Nowolazurowa Flyover - Projects Application

Main features used in this application DFX import Construction stage analysis with composite section Section property calculator for general shape composite section generation Moving load analysis

Description on this project

The cross section consists of six rolled section 1.09m high, which are made of S460 steel. The
beams are connected with 22cm (C30/37) concrete slabs. The viaduct consists of 13 spans, 28m
and 34m long. There is an expansion join on every pier, so finally it has 3 separate superstructures:
4 spans, 6 spans and 4 spans.

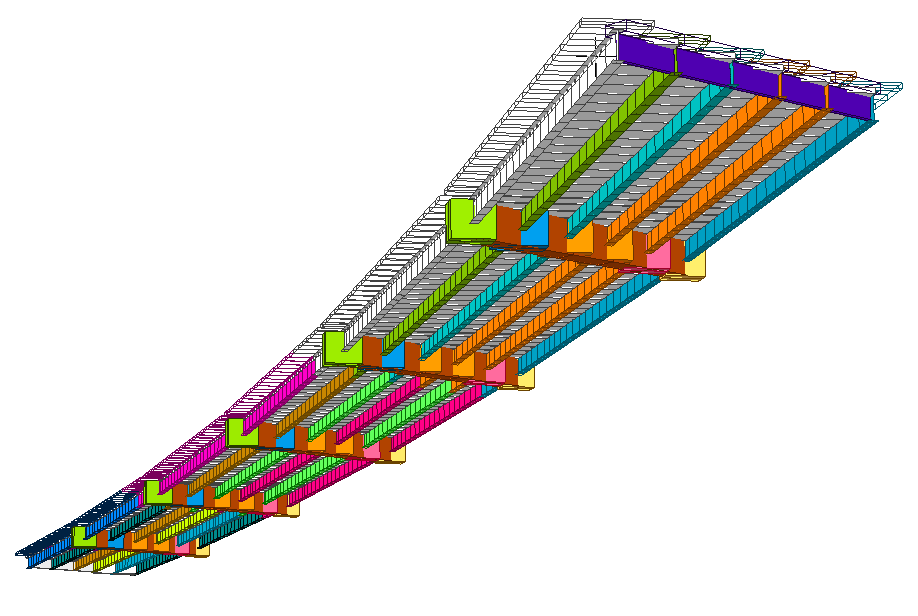

Fig. midas Civil Analysis Model for the Nowolazurowa Flyover

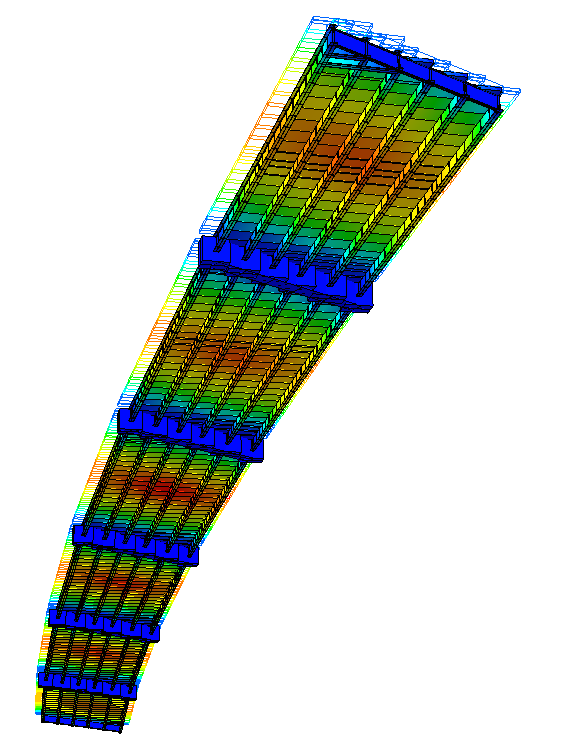

Fig. midas Civil Analysis Results for the Nowolazurowa Flyover

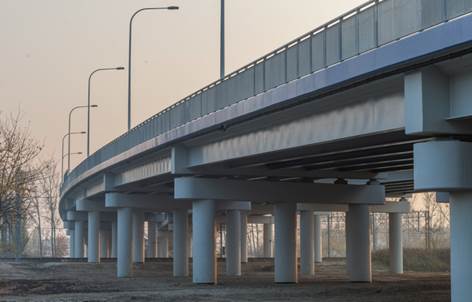

Fig. Nowolazurowa Flyover

Here's a chance to use midas Civil for free!

You can try a fully-functional version for 15-day.

Download

Project Contact SKANSKA

Address
Ul. Pruszkowska 17, 02-119 Warszawa, Poland
Introduction
SKANSKA is the largest construction company in Poland. Also, they build facilities for the largest companies in the automotive, pharmaceutical, furniture, commercial and public investors and the army. At the same time with the same commitment, they have smaller investments, building municipal and county roads, schools and kindergartens.
Website
www.skanska.pl
Email

Location

Warsaw, Poland

Owner

Road Investments Management Authority in Warsaw

General Contractor

SKANSKA

Engineering Consultant

SKANSKA

Construction Period

2014 - 2015

Type of Project

Steel Composite Girder Bridge

Size of Structure

34m Main Span, 420m Total Length
