Bridge Across R1 - Projects Application

Main features used in this application Construction stage analysis with steel truss elements Moving load analysis

Description on this project

The bridge of the total length of 86m is formed by a self-anchored arch structure of span length
of 70.57m. The steel arch has a concrete box-section. The deck is formed by edge girders, floor
beams and concrete deck slabs.

Fig. midas Civil Analysis Model of Bridge Across R1

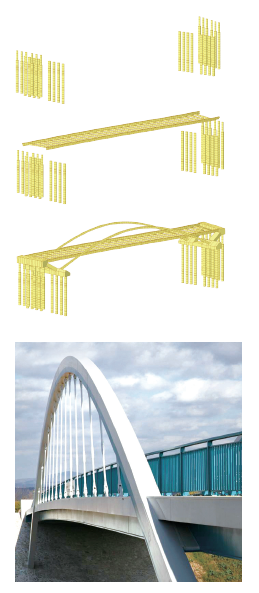

Fig. 3-step Construction Process and the Arch
