Connel Bridge - Projects Application

Main features used in this application Linear static and moving load analysis Buckling analysis

Description on this project

This bridge is originally constructed in 1903 for rail traffic. It carries the A828 road over Loch Etive. 224m long riveted steel truss structure consists of two 77m cantilever sections supporting a 70m suspended through truss span. Composite steel and concrete deck for road traffic is installed in two phases, in 1957 and 1967.

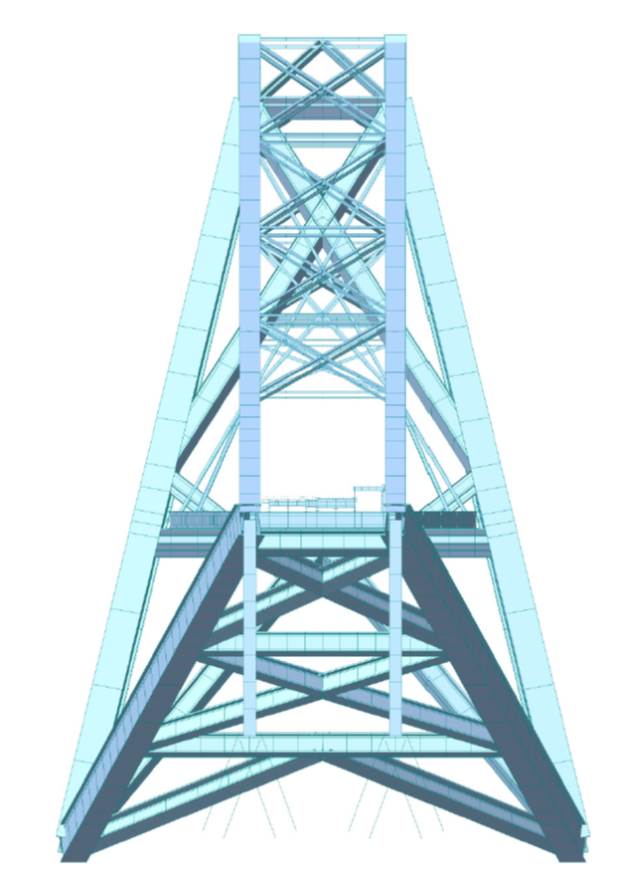

Fig. midas Civil Analysis Model of Connel Bridge-1

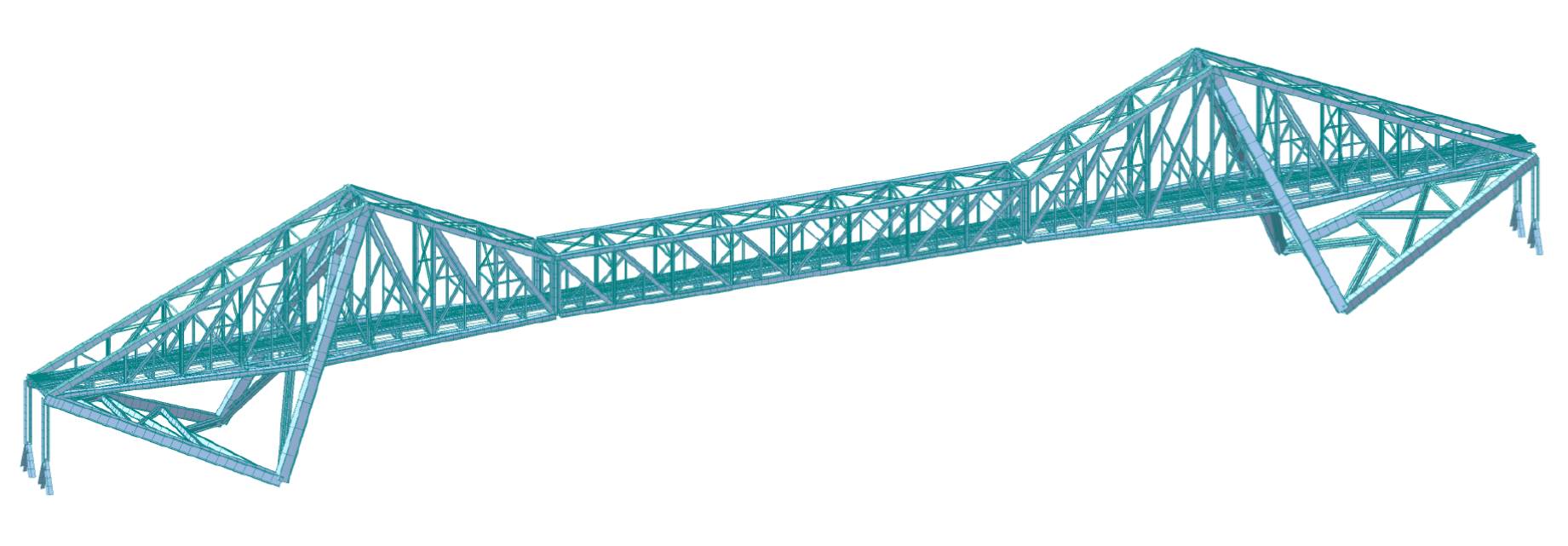

Fig. midas Civil Analysis Model of Connel Bridge-2
