Freeway D47, Section 8 - Projects Application

Main features used in this application Construction stage analysis with composite action Wet concrete load & mobile formwork simulation Steel box girder design as per Eurocode

Description on this project

The twin bridge, with a total length of 402m and spans from 49.7 to 102.6m, has a deck
formed by box girders assembled from steel sections and a composite deck slab. The girder is
supported by a single support in the bridge axis, and it is fixed in torsion at the abutments.
The steel structure was erected in a progressive cantilever from one abutment to another.

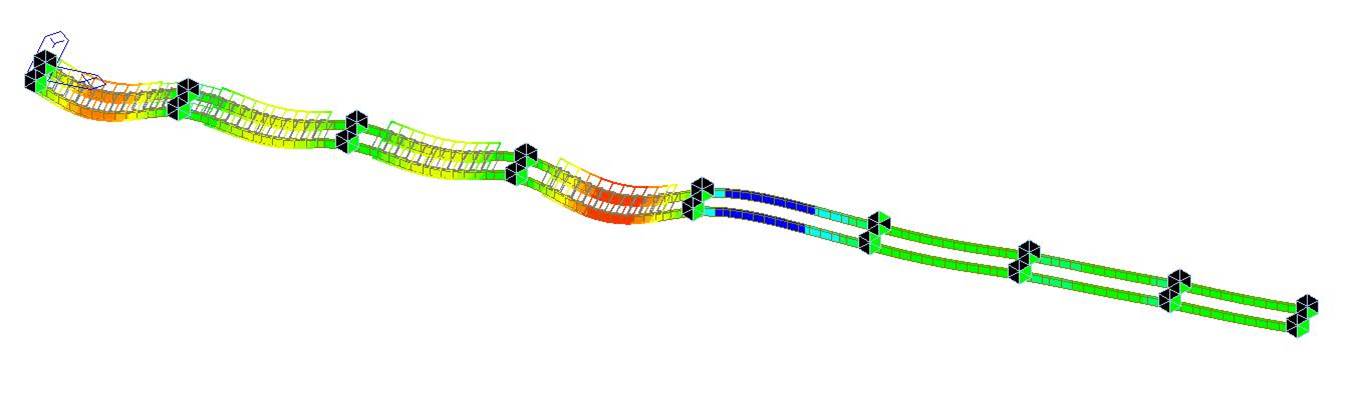

Fig. midas Civil Analysis Results for the Freeway D47, Section 8

Here's a chance to use midas Civil for free!

You can try a fully-functional version for 15-day.

Download

Project Contact Strasky, Husty and Partners

Address
Sumavska 524/31, 602 00 Brno, Czech Republic
Introduction
It assists clients in the design and construction of a wide range of bridge and motorway structures, from pedestrian bridges to multi-lane long-span structures, and unique or special designs for landmark structures. Their experience includes cable-suspension and cable-stayed bridges, precast and cast-in-place segmental concrete and arch bridges.
