Freeway D47, Section 9 - Projects Application

Main features used in this application Static and strength analysis of the combined cable-stayed road bridge Prestressed concrete design as per Eurocode

Description on this project

The twin bridge, with a total length of 605m, has 14 spans with length from 21.5 to 105m. Each bridge is formed by a two-cell box girder. In the main and two adjacent spans, the girders are mutually connected by top slab and individual struts, and they are suspended on a single pylon situated in the bridge axis.

Fig. 3D modeling of Freeway D47, Section 9

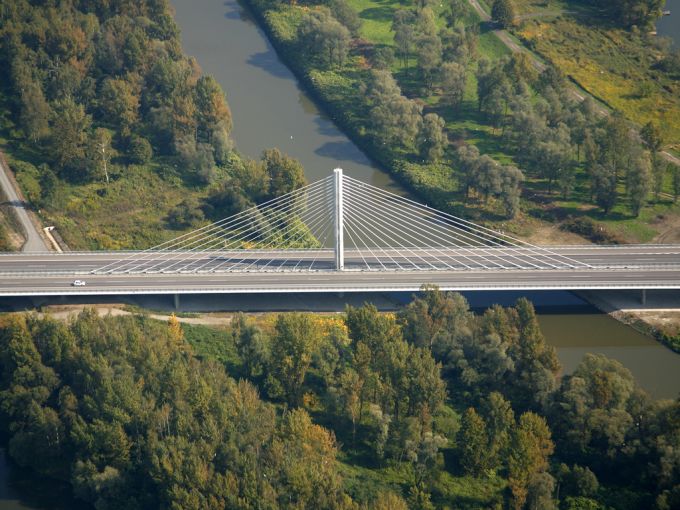

Fig. Top view of Freeway D47, Section 9
