Luding Dadu River Bridge - Projects Application

Main features used in this application Suspension bridge analysis control Construction stage analysis Elastic catenary cable element

Description on this project

With the UAV(Unmanned Aerial Vehicle System) traction leading the success of the cable crossing the Dadu River, the bridge will be around 1,000m long connecting to the two sides of the Dadu River. This bridge is being built at a high altitude and high seismic intensity of the suspension bridge with steel truss girder.

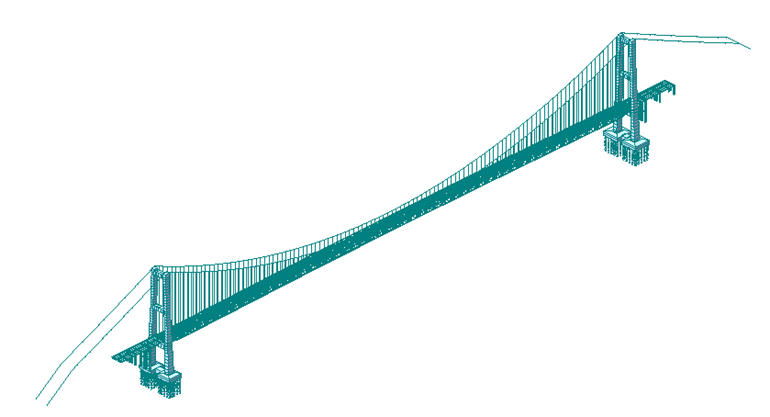

Fig. midas Civil Analysis Model of Luding Dadu River Bridge

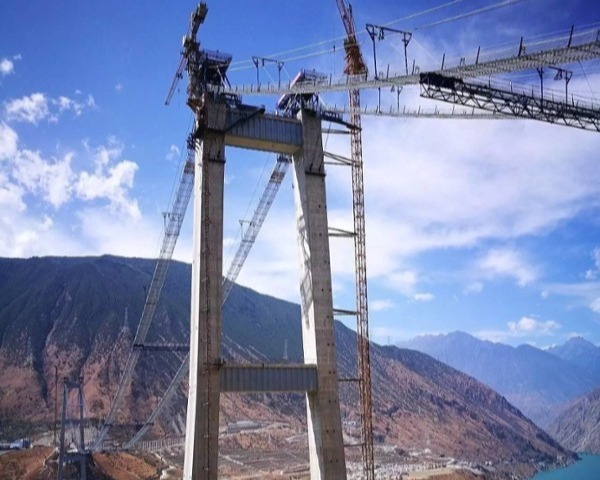

Fig. Construction Site of Luding Dadu River Bridge-1

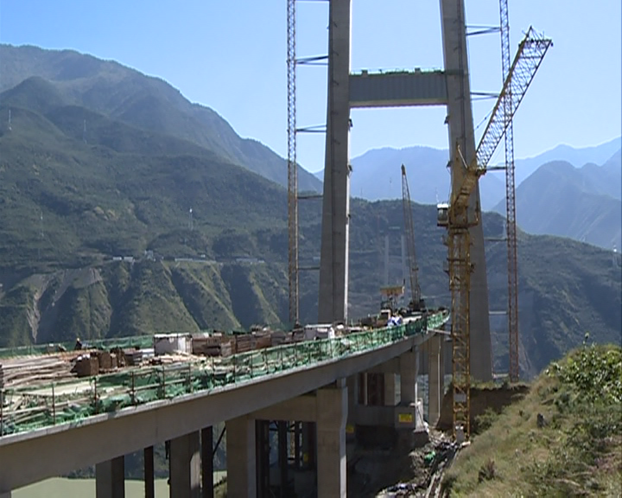

Fig. Construction Site of Luding Dadu River Bridge-2

Here's a chance to use midas Civil for free!

You can try a fully-functional version for 15-day.

Download

Project Contact Sichuan Provincial Transport Department Highway Planning, Survey, Design and Research Institute

Address
1#, Wuhou Hen Jie St. Chengdu 610041, China
Introduction
SCHDRI was found in 1953. Also, They play important role in the field of survey, design, consulting, research, construction administration, environmental assessment, earthwork for all kinds of highway, road, bridge, tunnel, and industry & residential buildings. SCHDRI has complete the design and consulting work for 4000 highways, 200 bridges, 100 tunnels.
Website
www.schdri.com
Email

Location

Sichuan, China

Owner

Sichuan Road and Bridge Group

Engineering Consultant

Sichuan Provincial Transport Department Highway Planning, Survey, Design and Research Institute

Construction Period

Under Construction

Type of Project

Suspension Bridge

Size of Structure

1.1km Main Span, 1.4km Total Length
