San Ignacio Bridge - Projects Application

Main features used in this application Linear static and non linear analysis Moving load analysis

Description on this project

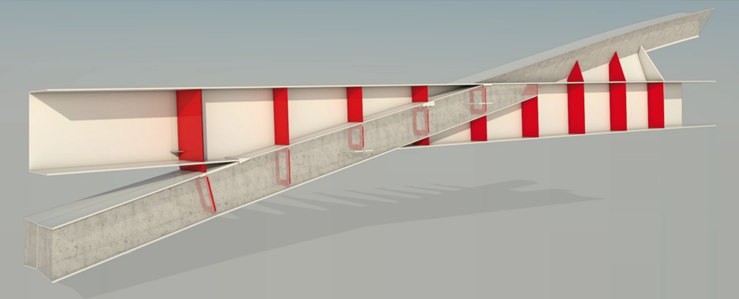

The bridge is a symmetric composite double arch. It is a 75m middle deck arch, with a 28m wide
deck. The arches spring from the lower part of the channel. They are fixed at the abutments. They
cross over the deck in the central 51m and elevate just 3m above it. The arches split it between
the pedestrian and the vehicles zone. Between the arches, in the central part there are placed
the four road lanes and the bicycle track; and at both sides the foot paths. All the service lines go
under the deck.

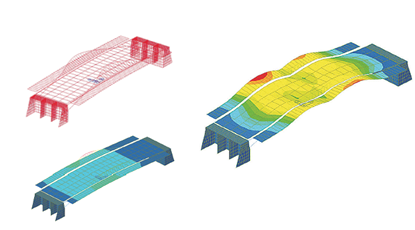

Fig. midas Civil Analysis Result Diagram of San Ignacio Bridge

Fig. midas Civil Analysis Result Diagram of San Ignacio Bridge
