Thuan Phuoc Bridge - Projects Application

Main features used in this application Response spectrum & eigenvalue analysis Vehicle load optimization Large displacement analysis

Description on this project

The Thuan Phuoc Bridge is a suspension bridge that crosses the lower part of Han River at Da Nang, Vietnam. The bridge has 4 lanes, composed of 3 spans of 1,850m total long and 18m wide and the main span of 405m long. Its two major pillars are 80m in height. It is the longest suspension bridge in Vietnam, with total investment of nearly 1 trillion dong. Consulting firms from China, Cuba and Canada provided assistance for the bridge.

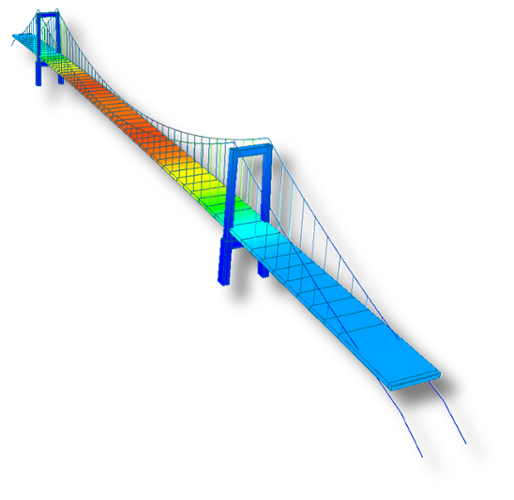

Fig. midas Civil Analysis Result Diagram of Thuan Phuoc Bridge

Here's a chance to use midas Civil for free!

You can try a fully-functional version for 15-day.

Download

Project Contact TECCO533

Address
09 Nguyen Phi Khanh, P. Hoa Thuan Tay, Q. Hai Châu, TP. Da Nang, Vietnam
Introduction
Tecco533 was established in 1996 and has undertaken many large projects in Vietnam. It has been highly appreciated by the Owner in terms of progress, quality, fine art, and especially works applying new and modern technology such as Han bridge, Thuan Phuoc bridge, Phu Nam bridge, Nhat Le bridge 2, highways.
Website
www.tecco533.com.vn
Email
tecco533@dng.vnn.vn

Location

Da Nang, Vietnam

Owner

Department of Transport

General Contractor

BK Engineering and Construction Company

Engineering Consultant

TECCO533

Construction Period

2003 - 2009

Type of Project

Suspension Bridge

Size of Structure

405m Main Span, 1.9km Total Length
